The Fields panel displays the list of data choices for the selected data source:

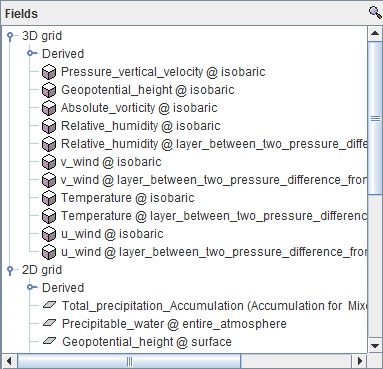

Image 1: Fields Panel in the Field Selector

Selecting a data source in the Data Sources panel will list the available fields in the Fields panel. This list is usually hierarchical showing different categories of fields (e.g., 2D grids, 3D grids, image sequences, etc.). Note that you can search through these fields by clicking the button above the Fields panel. This allows you to type in your desired field without having to go through the entire list. To see the fields under a particular category, click on the toggle icon ().

Selecting a field will show the list of display types available in the Displays panel and subsetting information (e.g., times, spatial subset). The fields listed in the initial tree (in the above case, 3D and 2D) are all native to the data source. The fields listed under the Derived tree are produced from formulas that are applied to the native fields.

McIDAS-V provides derived parameters; parameters not provided by the original source data, but made from the source data with computations by McIDAS-V. This provides commonly used fields, such as dewpoint. While dewpoint is not included in the native fields of the data, it can be derived from humidity and temperature, where are native fields.

Since few data sets use the same names for parameters, McIDAS-V keeps of a list of "aliases" or particular parameter names that match with "canonical" names which are generally understood by all McIDAS-V users and which McIDAS-V uses for computations. You can add your special parameter names to the list of aliases. Read the Parameter Alias Editor section for information on using that facility.

All needed source parameters for one derived parameter must come from one single data source (e.g. from one single netCDF file). McIDAS-V attempts to find derived parameters that can be made from data in each data source in the Data Sources panel, but not from all possible combination of data sources. If you had separate files of u and v wind components, for example, the parameter names or aliases will not create derived wind vectors.
