You can capture the Main Display window as an image, a QuickTime movie or an animated GIF.

• Saving Images
• Printing Current View
• Saving QuickTime Movies
• Creating a Movie
• Playing QuickTime Movies

You can save a display as an image by selecting the View->Capture->Image... menu item in the Main Display window. A file dialog will open where you can enter a file name for the image file. McIDAS-V supports JPEG, PNG, GIF, PDF, PS, and SVG formats. From this File Dialog you can also specify the image quality (only used for JPEGs) and what to capture. You can also select whether or not the background is transparent.

Note: When capturing an image, the Main Display window cannot be obscured.

McIDAS-V can also write out an image and the corresponding Google Earth KML or KMZ file. For this to be correct, the projection must be a Lat/Lon geographic projection (i.e., rectilinear) and in an overhead view. Some of the default projections that are Lat/Lon include World, Africa, Asia, Australia, and the individual state projections (US->States->...). You can also create your own Lat/Lon projection using the Projection Manager. The simplest way to get a correct projection is to select the Projections->Use Displayed Area menu item in the Main Display window. If you specify a .kml file, McIDAS-V will generate an image with the same file prefix and the kml file that refers to the image. If you specify a .kmz file (which is a zip format) it will contain the image and the kml file.

You can send any display to a printer. Select the View->Capture->Print... menu item in the Main Display window. A Print dialog will popup where you can configure and print an image.

You can save any sequence of displays as a movie. Select the View->Capture->Movie... menu item in the Main Display window to open the Movie Capture window:

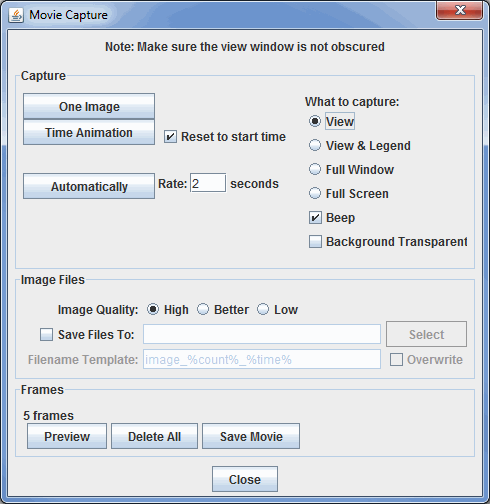

Image 1: Movie Capture Window

Note: More information about these controls is found in the Creating a Movie section below.

• Capture -
• - Captures one image to create a movie.
• - Captures a loop of images at the specified dwell rate through the Time Animation Controls.
• Reset to start time - Resets the loop to the initial timestep before recording the video.
• - Creates a new frame in the movie every given number of seconds.
• What to capture -
• View - Captures only what is in the view screen of the Main Display window.
• View & Legend - Captures both the view and the Legend.
• Full Window - Captures the entire Main Display window, including the toolbars.
• Full Screen - Captures everything visible on the monitor.
• Beep - Produces a beeping noise at the beginning of each frame captured in the movie.
• Background Transparent - Captures the movie with the background image transparent.
• Image Files -
• Image Quality - Sets the quality of the images. Lower quality images will utilize less memory, but will not look as good.
• Save Files To - Allows you to individually save each image in your movie. To use this option, click the checkbox for Save Files To and specify a directory.
• Filename Template - Sets the naming structure for the images. This option is only available if you are saving the individual images in your movie with the Save Files To option. There are several ways you can customize the output, described in the section below.
• Frames -
• # frames - Displays the number of frames in the movie.
• - Opens a Movie Preview window, where you can see individual slides before saving the movie.
• - Deletes every frame saved in the movie.
• - Saves the movie to the specified location using the chosen format type.

To make a movie, there are three steps: capturing the frames, previewing the frames, and creating the movie. McIDAS-V supports QuickTime movies, animated GIF and AVI files, Google Earth KMZ and AniS or FlAniS HTML file formats.

• To capture frames, in the Capture section of the Movie Capture window, do the following:
• Capture one image - Makes a single frame of the McIDAS-V display. Progressively change the display and capture one frame at a time to create a movie.
• Capture animation - Captures all frames in a display time sequence that you control with the usual Time Animation Controls. Check Reset to start time to ensure you capture the entire animation sequence. The QuickTime animation capture starts on the first frame visible in McIDAS-V and goes to the end. This tool can be used to capture part of a loop.
• Capture automatically - Takes snapshots of the frames in McIDAS-V display while you make changes, such as changing the view point, zooming, rotating, etc. Click the button again to stop the snapshot. You can change the sampling rate of the snapshots with the Rate field.
• You can combine these three different methods of capture. The list of frames is additive.
• You can Preview the movie by pressing the button. This opens a Movie Preview window, where you can see the individual slides before saving the movie. The Movie Preview window also allows you to remove individual frames from the movie before saving it with the button.
• If you want to save the individual intermediate files that are used to create the movie, check the Save Files To box and specify a directory and file name format. Otherwise, the intermediate files will be saved in a temporary directory and will be removed. You can use the following templates to customize the name of the output file:
• %count% - Represents the image counter.
• %count:decimal format% - Allows you to format the count using the same rules defined in the lat/lon format section of the User Preferences window's Formats & Data tab. You can also specify a Java DecimalFormat, e.g., %count:000% outputs three-digit counts with leading zeros (001, 002, etc.).
• %time% - Represents the animation time in the default format.
• %time:time format% - Begins with "time:" and contains a time format string using the the same date formatting rules described in the User Preferences window's Formats & Data tab.
• When done capturing the frames, select the button to specify the name and format of the movie you want to save.

McIDAS-V supports displaying certain types of QuickTime movies (including the ones McIDAS-V generates). These movies can be loaded in the General->Files/Directories Chooser in the Data Sources tab of the Data Explorer.
