The Data Sources panel lists the data sources currently loaded into McIDAS-V and provides access to both the user-made and native formulas. The data sources listed are chosen as described in the Data Sources page. The selected item is the data source that will be displayed after you have completed your work in this tab:

Image 1: Data Sources Panel

To set the defaults for a data source bring up the Properties dialog by right-clicking (or double-clicking) on the data source name in the Data Sources panel of the Field Selector tab and select Properties:

Image 2: Data Sources Panel Properties

• Remove This Data Source - Removes the data source from the McIDAS-V Session.
• Reload Data - Reloads the data. This allows your data to be updated to a more recent time without having to go back to the Data Sources tab to reload it.
• Change Data - Opens a 'Change data for:' window. This window looks almost exactly like the Data Explorer and works the same. You can select a new data source to load in, and this will replace the existing one.
• Write Local Grid - Saves the data as a grid as a netCDF file (*.nc). This opens a window where you can select what Fields in the selected data source you want to write to a grid.
• Write Field Mask Plugin - Saves the data source as a Jar file (*.jar). This opens a 'Data Source Field Mask File' window, where you can select what parameters to show, hide, or write to a plugin.
• Save As Favorite - Saves the selected data source as off as a *.xidv bundle in your /User/McIDAS-V/datasources directory. You can load this file in as a bundle, and the data source will be added.
• Properties - This allows you to open the data source's Properties window.

The Properties Dialog is different for different types of data sources. Below is the dialog window for a gridded data source:

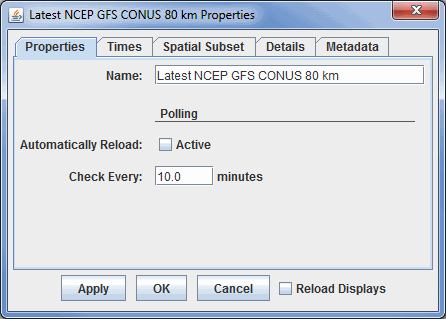

Image 3: Properties Tab of the Data Sources Properties Window

• Name - Represents the name of the field you are polling.
• Automatically Reload - Reloads the data from the data source automatically when the Active checkbox is checked.
• Check Every - Sets how often McIDAS-V will check to see if the data source has been updated.
• Reload Displays - Reloads the display at the time you begin polling.

For point data you can define Time Binning settings (not shown) by selecting a Bin Size (e.g., 5 minutes, 1 hour) and a Round To value (e.g., On the hour, 15 minutes after the hour). This will map all the observation times into the nearest bin. The smallest time is rounded with the Round To value (e.g., if Round To was "10 after" and the smallest time was 10:23 then this time would be rounded to 10:20). This is the base time. Each actual observation time is mapped into a set of bins of Bin Size starting at the base time.

The Times tab allows you to select the times to use. Click off the Use Default checkbox and select individual times. You can right mouse click in the list to show a menu that allows you to select different subsets (e.g., every 3rd time).

Image 4: Times Tab of the Data Sources Properties Window

For grids and other data source types, the data can be subsetted and decimated with the Spatial Subset tab. The X Stride, Y Stride and Level Stride lists allow you to decimate a grid, selecting every Nth point. The Bounding Box allows you to define a spatial area to load. The default spatial domain of the data is shown by the blue outline box. To select an area, left click and drag on the map. Alternatively, you can enter in Lat/Lon values in the fields to the left of the map and press Enter. Once a subset is selected it can be resized (grab on the little black selection points) moved (grab somewhere near the box) and delete (press the Delete key).

Subsetting can be useful when you are displaying an image that has a high resolution or covers a large spatial area as a Contour Plan View or Color-Filled Contour Plan View display. Instead of having McIDAS-V take the time to compute values between every point, you can set a stride where only every Nth point will be taken into consideration. If you need a very detailed image, it is recommended that you do not change the stride away from the default (none). However, if you are trying to get a general picture, the stride feature can be a time-saver.

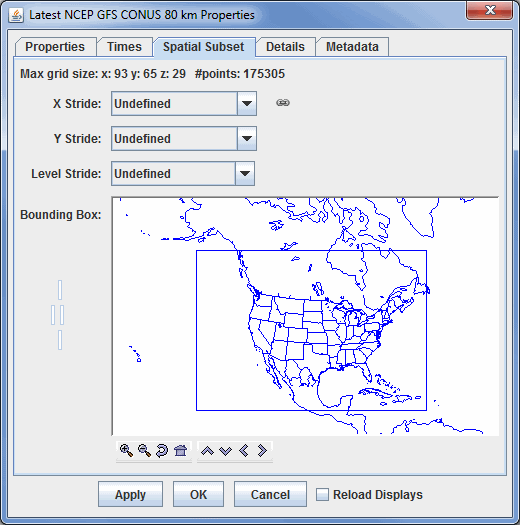

Image 5: Spatial Subset Tab of the Data Sources Properties Window

A version of this spatial subsetting window is used in the Field Selector tab of the Data Explorer. Here, you explicitly enable these settings. The decimation and spatial subset are shown in different tabs:

Image 6: Subset Panels in the Field Selector

The Details tab shows further information about the data source, e.g.: any documentation associated with the data, what files or URLs are used, etc.

For grid data sources the Metadata tab shows the NetCDF metadata information.

The Objective Analysis tab is available if you are working with Point Data.

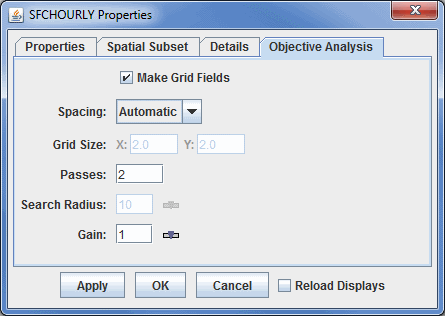

Image 7: Objective Analysis Tab of the Data Sources Properties Window

• Make Grid Fields - Allows point data to be plotted in as a grid display. If you do not have this option checked, then the Gridded Fields and Gridded Fields (with first guess) will not be available in the Fields panel of the Field Selector. Also, if this option is not selected, any other items in this display will have no effect on the final display. This option is checked on by default.
• Spacing - Determines the grid spacing method.
• Automatic - Calculates grid spacing from observation density.
• Degrees - Uses a specific lat/lon spacing fro the grid spacing.
• # Points - Sets the number of grid points in the x and y direction.
• Grid Size - Sets the X and Y spacing in spacing units. This is an option if Degrees or # Points is selected for Spacing.
• Passes - Sets the number of passes for the Barnes analysis to do. Four passes are recommended for analyzing fields where derivative estimates are important (Ref: Barnes 1994b), three passes recommended for all other fields (with gain set to 1.0) (Ref: Barnes 1994c "Two pass Barnes Objective Analysis schemes now in use probably should be replaced by appropriately tuned 3pass or 4pass schemes"), and two passes are only recommended for "quick look" type analyses.
• Search Radius - Sets the search radius (in grid units) for the weighting of points in determining the value at a specific grid point. This should be in the range 0.2 to 1.0. Data are fitted more closely with a gain of 0.2 (at the expense of less overall accuracy over the entire grid), larger values smooth more.
• Gain - Represents the factor by which scaleLength is reduced for the second pass. This should be in the range 0.2 to 1.0. Data are fitted more closely with a gain of 0.2 (at the expense of less overall accuracy over the entire grid), larger values smooth more. Suggested default: 1.0. Set the gain for each pass after the first.

You can create your own formulas using the McIDAS-V Formulas facility. The Formulas data source in the Field Selector is a special data source and lists all of the available end user formulas. You can right-click on the data source to create new formulas and import and export formulas. The formulas are listed in the Fields tree. Right-clicking on one of the formulas listed in the Fields tree allows you to edit, copy or evaluate the formula.

You can select a formula just like any other Field and create a display from it. However, the formula, when evaluated to create the display, usually needs one or more other data fields to act on. In this case a special Field Selector window appears that allows the user to select the fields for the formula. (Note: The Fields you select here can also be Formula Fields resulting in further Field selection).
